Einzelheiten zu den Produkten

Created with Pixso. Zu Hause Created with Pixso. Produits Created with Pixso.
TFT-LCD-Anzeigefeld
Created with Pixso.

7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins

7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins

7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins

Markenbezeichnung: Genyu
MOQ: 1
Preis: €9.27-10.59
Einzelheiten
Beschreibung des Produkts
Einzelheiten
Herkunftsort:
Guangdong, China
Anzeigegröße:
7,0 Zoll
Umrissdimension:
165,0 x 100 x 3,5 mm
TFT-Typ:
IPS
Pixelanzahl:
1024*600
Eingabeschnittstelle:
RGB
FPC-Verbindungsstück:
50 Pins
Anzeigemodus:
A-TFT Transmissiv
Anzeigeformat:
Grafische RGB 1024*600 Punktmatrix
Blickrichtung:
Frei
Anzeigebereich:
154,2 x 85,92 mm
Pixelabstand:
0.1506 x 0,1432 mm
Pixelanordnung:
Vertikaler RGB-Streifen
Anzahl der Quellen:
1024
Anzahl der Tore:
600
Bildschirmdiagonale:
17,78 cm
Hervorheben:

7 Inch TFT LCD Display

,

1024x600 Pixel TFT LCD Module

,

IPS TFT LCD Panel

Beschreibung des Produkts
7-Inch Full Color TFT LCD Display Module
GY0700-19049A1 is a high-quality 1024×600 pixel matrix TFT LCD module featuring IPS technology and easy microcontroller integration.
Key Features
  • 7.0-inch diagonal display with 16:9 aspect ratio
  • 1024×600 RGB pixel resolution
  • IPS TFT panel technology
  • Transmissive display mode
  • Free viewing direction
  • RGB interface input data
  • Easy microcontroller integration
Technical Specifications
Parameter Specification
Screen Size 7.0 inches
Resolution 1024×600 pixels (RGB)

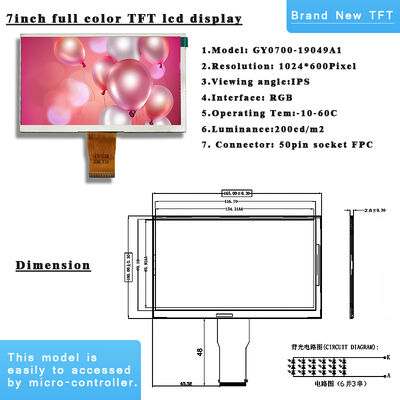

Outline Dimensions 165(H) × 100(V) × 3.5(T) mm
Display Area 154.2(H) × 85.92(V) mm
Pixel Pitch 0.1506(H) × 0.1432(V) mm
Pixel Arrangement RGB Vertical Stripe
Display Mode IPS
Need a custom solution? We specialize in customized LCD displays tailored to your specific requirements.
Contact Us for Customization
Product Images
7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins 0 7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins 1 7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins 2 7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins 3 7 Inch 1024x600 Pixel IPS TFT LCD Display Module with RGB Interface and 50 Pins 4
Company Information
Genyu Technology (H K) Limited / Shen Zhen Genyu Optical Co., Ltd
  • Comprehensive product testing and quality assurance
  • Detailed technical documentation and support provided
  • Long-term product supply guarantee
  • 12-month warranty period
  • Forward compatibility for product upgrades
Frequently Asked Questions
What is your production capacity?
We operate from a 30,000m² production facility with over 800 personnel across various LCD/LCM divisions.
How do you ensure quality control?
We maintain strict quality control from start to finish, with ISO9001, RoHS, and CE certifications. All products undergo 100% visual and electrical testing before shipment.
What is your minimum order quantity?
No strict MOQ for standard models. For customized models, MOQ depends on LCD size requirements.
What is your lead time?
Standard models: 1-2 weeks or from stock. Customized models: 5-6 weeks.
Do you provide samples?
Yes, we provide samples. Free shipping within China. Custom LCD orders typically include 5-8 free samples.
Can I get customized LCD displays?
Absolutely. With 20 years of LCD production experience, we offer comprehensive OEM services including custom LCD, LCM, backlight, and FPC solutions across TN, HTN, STN, FSTN, VA/BTN technologies.
What technical support do you provide?
We provide complete technical documentation including LCD drawings, driver IC data, initialization codes, and engineering support throughout development.
