Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs

Markenbezeichnung:	Genyu
MOQ:	1000 Stücke
Preis:	$1.95/pieces 1000-4999 pieces

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Guangdong, China

Typ:

Anzeigegröße:

76*58 mm

Lieferantentyp:

Hersteller

Produktname:

Maßgeschneidertes 7-Segment-LCD-Anzeigemodul

LCD-Typ:

HTN, positiv

Bildschirmgröße:

64(B)*41(H)*9(T) mm

Modulgröße:

76 (B) x 58 (H) x 19,7 (T) mm

Drive IC:

HT1621

Hintergrundbeleuchtung:

Grüne LEDs

Betrachtungswinkel:

6 Uhr

Polarisatortyp:

Transmission

Antriebsmodus:

Pflicht 1/4, Voreingenommenheit 1/3

Betriebstemperatur:

-10~+60℃

Hervorheben:

Cob Design Monochrome LCD Display Modules

7 Segment Monochrome LCD Display Modules

Beschreibung des Produkts

Genyu flexible STN/HTN/TN/FSTN customized display modules 7 segment lcd board China supplier lcd

Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs 0

Product Description

1. Brand Name: Genyu

Model Number: GY88128-25

Display Mode	COB Segment Display Modules
PIN Pitch	2.54 mm
Screen Size	64(W)41(H)9(D) mm
Module Size	76(W)x58(H)x19.7(D) mm
Screen segment	Segment Custom LCD
Control/drive IC	HT1621
Display color/BL LED	WHITE /BLUE/ RED /YELLOW /GREEN /RGB FULL COLLOR
Viewing Angle	6 O' clock LCD LED SCREEN
Display mode	TN HTN positive transmissive
LCD parameter	Duty1/4 Bias1/3
LCD parameter	BL I=30MA
LCD parameter	VOP=4.2V
Operating Temperature	-10~+60℃
View Area	40.5 * 20.1mm

PIN Interface Deails:

HTN CNI	1	DATA	HTN CN2	1	N.C
	2	RW		2	FUNCT2
	3	BL		3	VDD(5V)
	4	CS		4	FUNCTION
	5	VSS		5	ON.P
	6	FUNCT2		6	SW2
	7	VDD(5V)
	8	FUNCTION
	9	ON.P
	10	SW2

3. The Drawing

Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs 1

Want more?

The intended PIN/FPC Connector Diagram?

LCD layout design according to your screen image?

LCD Detailed Images

LCD SCREEN FRONT SIDE

Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs 2

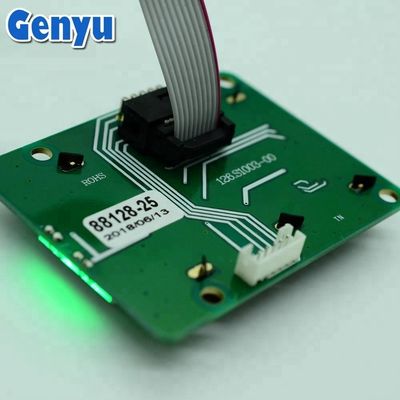

LCD SCREEN BACKSIDE

Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs 3

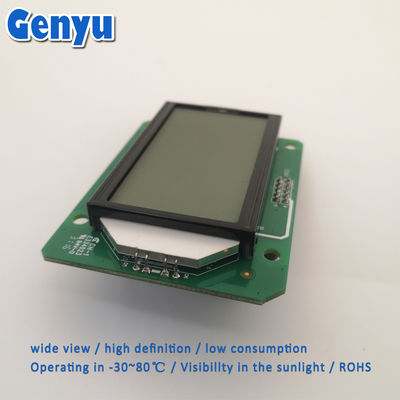

WHEN THE BACKLIGHT NO WORKING

Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs 4

Lcd Genyu Monochrome Cob Design TN/HTN/STN/FSTN Display Modules 7 Segment Lcd Board 76*58 mm Display Size and Green LEDs 5

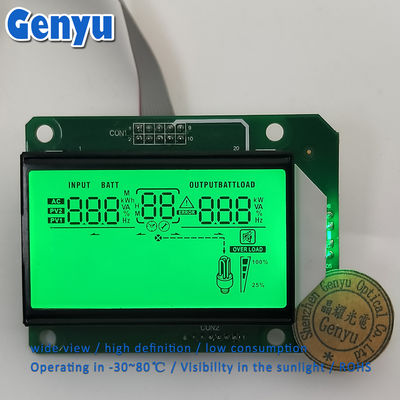

WHEN THE GREEN BACKLIGHT WORKING
