HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle

Markenbezeichnung:	Genyu
MOQ:	1500 Stücke
Preis:	$1.70/pieces 1500-4999 pieces

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Guangdong, China

Typ:

Htn

Anzeigegröße:

99,8*42mm, kundenspezifisch

Produktname:

Kundenspezifisches Segment-LCD

Anzeigemodus:

HTN, positiv

Blickwinkel:

6 Uhr

Polarisatortyp:

transflexiert

Stecker:

Stift

Betriebstemperatur:

0~+50 ℃

Versorgungsspannung:

5.0V

Antriebsmethode:

1/4 Dienst, 1/3 Voreingenommenheit

Hintergrundbeleuchtung:

Weiß, LEDs

Betrachtungsbereich:

96,8(B)* 35,0(H) mm

Hervorheben:

Monochrome HTN E-bike LCD Display

Custom 46 Pin LCD Display

HTN Monochrome E-bike LCD Display

Beschreibung des Produkts

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen

LCD Parameters

Model Number: GY-H64356H

Structure: LCD Glass + Backlight + PIN

NO.	ITEM	SPECIFICATIONS
1	Product Name	Customized Segment LCD Display for E-bike/Scooter
2	LCD Type	HTN, Transflective, Positive
3	Operating Voltage	5.0V, customized
4	Operating Temperature	0~+50℃
5	Storage Temperature	-10~+60℃
6	Connector	PIN( 46pins), customized
7	View Direction	6 O'clock
8	Backlight Color	White
9	Outline Dimension	99.8(W)* 42.0(H)* 2.8(T) mm
10	VA Size	96.8(W)* 35.0(H) mm

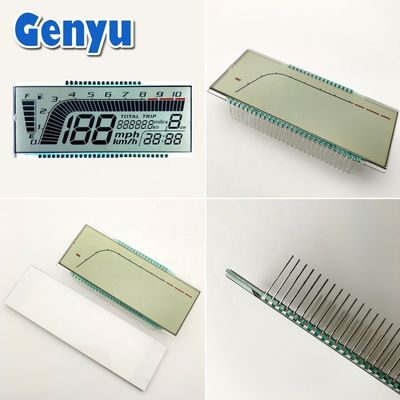

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 0

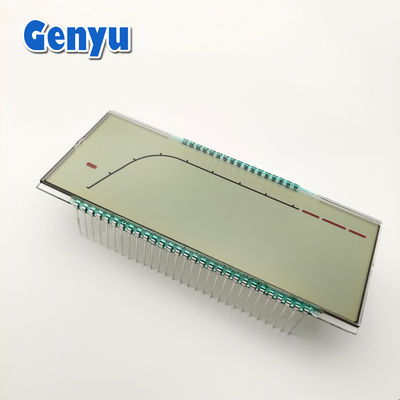

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 1

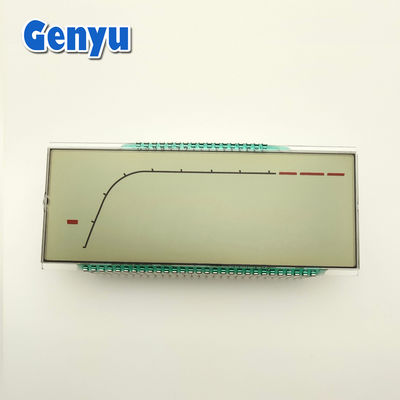

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 2

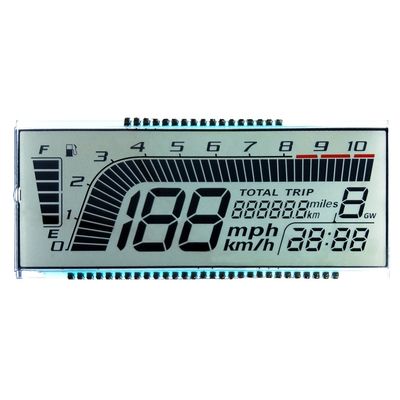

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 3

Segment LCD Projects

More Segment LCD Display Modules maybe you will like:

LCD Mode: TN, HTN, STN, FSTN, VA...
Polarizer Type: Reflective, Transflective, Transmissive.
Display Color: GRAY, Yellow-Green, White, Black, Blue...
Connector: PIN, Zebra, FPC, COG, COB.

Customization will be accepted, with free samples after tooling cost.

For more details, pls just contact us, thanks !


TN LCD, COG+PIN	HTN LCD, Positive	STN LCD, Negative

VA LCD, White on black	Segment LCD Module, Green	FSTN LCD, White

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 10

Company Information

Our Services

custom lcd, segment lcd, custom segment lcd, 7 segment lcd, segment lcd display, segment lcd screen, custom lcd screen

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 14

Our Advantages:

1. Professional Technical Support, 24 Hours Service

2. Strict Quality Control, Double Testing

3. Large Daily Production, Faster Leading Time

4. Factory Directly Supply, Competitive Price

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 15

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen with 6 O'clock Viewing Angle 16

FAQ

1.Q: Are you a manufactory or trade company?

A. We are a professional manufacturer, which specializes in TN, HTN, STN, FSTN, VA/BTN monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, LCD Modules located in Shenzhen and Jiangxi.

2. Q: How can I get the samples?

A: Send inquiry --Offer quotation --Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect

3. Q: How long can I expect to get the sample?

A: Contour drawing: 2-5 days Sample time: 12-15 business days.

4. Q: Can I get a lower price of lcd display?

A: Yes, cheaper price with bigger/larger quantities order.

5. Q: How to customize a new lcd module?

A: Sure. Just give us messages of your specifications/demand and we will draw for you, Or send us your LCD drawing, then we will check for you.

6. Q: What is the minimum order quantity?

A: All our products have MOQ requirements, please contact our salesman for detailed information.

7. Q: How long of mass production?

A: Usually 25-35 business days. It depends on different order quantities and part numbers.
