RoHS Small 1.8 2.4 2.8 320x240 TFT Screen Module IPS Full Color RGB SPI 3.2 3.5 4.3 7.0 Inch Tft LCD Display

Markenbezeichnung:	Genyu
Preis:	$1.20-8.60/pieces

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Guangdong, China

Typ:

Tft

Anzeigegröße:

Standard, 0.96~10.1 Zoll

Lieferantentyp:

Industriell, fabrik

Auflösung:

Helligkeit:

Betriebstemperatur:

/, -30 ~+80 ℃ (max)

Marke:

Anzeigeart:

Montagetyp:

Bildschirmgröße:

Kommunikationsschnittstelle:

Treiber IC:

Produktname:

Kleines TFT-LCD-Display

LCD -Typ:

TN/IPS

Platten-Größen:

0.96~10.1 Zoll

Pixel/Auflösungen:

128x160, 176x220, 320x240, 480x320, 480x272, 800x480 ...

Ansichtsrichtung:

6 Uhr, 12 Uhr, alle

Treiber IC:

ST/ ILI -Serie, optional

Hintergrundbeleuchtungstyp:

Mit LEDs

Schnittstellentyp:

RGB, SPI/I2C, 8/16/24 bitparallel

Eingangsspannung:

20,8 bis 3,3 V

Hervorheben:

4.3 inch TFT Screen Module

RoHS TFT Screen Module

320x240 TFT Screen Module

Beschreibung des Produkts

Service

Products:
LCD/ TFT /OLED display, LCM, Touch screen

We are an LCD manufacturer.

Tell us what you need, and we reply to you soon.
Warranty:

Free change within 1 year for poor quality.
Free change for damage in transit.

RoHS Small 1.8 2.4 2.8 320x240 TFT Screen Module IPS Full Color RGB SPI 3.2 3.5 4.3 7.0 Inch Tft LCD Display

Product Overviews

A. TFT LCD Display Specifications:

1	Brand	Genyu
2	Product Name	0.96-7.0 Inch TFT LCD, TFT Display
3	Display Mode	TN/ IPS

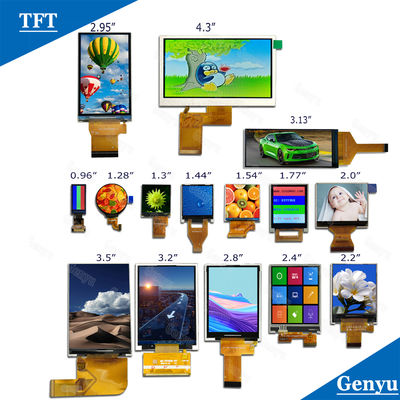

4	Panel Size	0.96", 1",1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5.0", 7.0", etc.
5	Dot Matrix	80x160, 96x128, 128x128, 128x160, 176x220, 240x240, 240x284, 240x320, 320x480, 379x960, 480x272, 480x800, 480x854, etc.
6	Viewing Direction	6 O'clcok, 12 O'clock, All Direction
7	Components	TFT LCD, Driver IC, FPC, Backlight, Touch Panel(optional)
8	Backlight Type	LEDs, Parallel
9	Interface Type	RGB, 8/16/24-bit Parallel MCU, I2C, SPI
10	Drive IC	ST/ ILI Series, compatible
11	Connector	COG+FPC, customized
12	Luminance	180/ 200/ 250/ 300/ 500/ 1000 cd/m2, Optional
13	Operating Temperature	-30~+80 ℃( max.)
14	Voltage	2.8~5.0V
15	RoHS Compliant

RoHS Small 1.8 2.4 2.8 320x240 TFT Screen Module IPS Full Color RGB SPI 3.2 3.5 4.3 7.0 Inch Tft LCD Display 1

B. Some Models for refernece

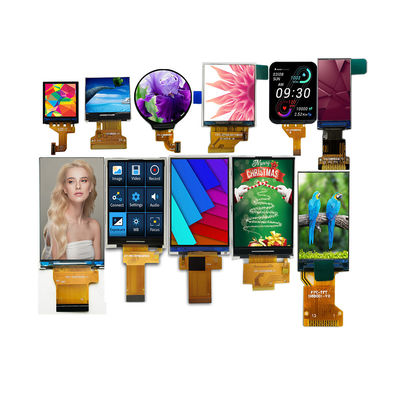

a. TFT Display no touch

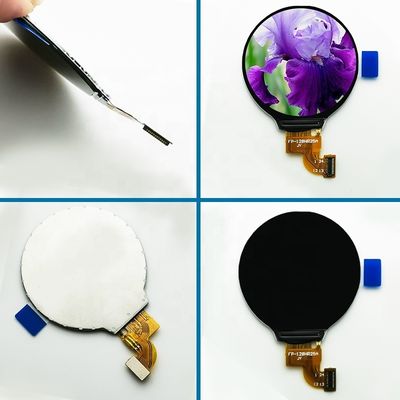

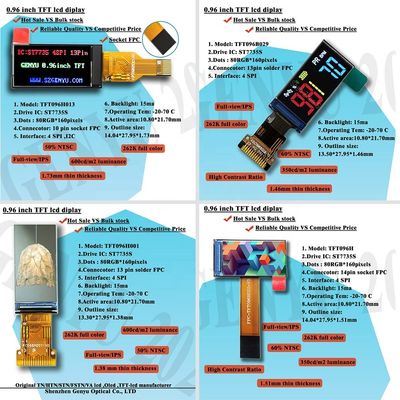

0.96" TFT, ST7735	1.28" TFT, GC9A01	1.44" TFT, ST7735

1.54" TFT, ST7789	1.77" TFT, ST7735	1.8" TFT, NV3030B

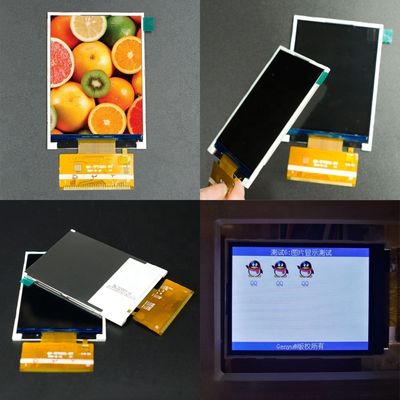

2.4" TFT, ST7789	2.8" TFT, ILI9341	2.95" TFT, ST7701

3.13" TFT, ST7701	3.2" TFT, ILI9341	5.0" TFT, OTD9960A+OTA7001A

b. TFT LCD with Touch

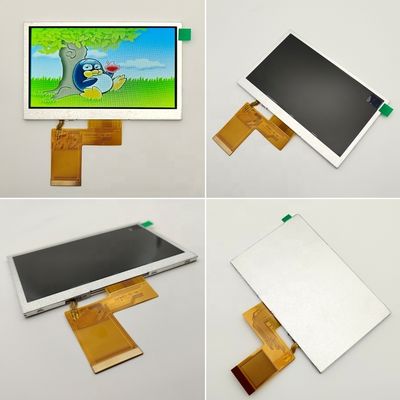

2.4 Inch TFT with Resistive Touch	4.3 Inch TFT with CapacitiveTouch	7 Inch TFT with Capacitive Touch

We have developed different models for different sizes.
With very competitive price for bulk quantity.
Customization will be accepted, such as FPC Cable, Backlight, Touch Screen, etc.

For more details, pls just contact us, THANKS!

RoHS Small 1.8 2.4 2.8 320x240 TFT Screen Module IPS Full Color RGB SPI 3.2 3.5 4.3 7.0 Inch Tft LCD Display 17

Company Information

Packaging & Shipping

Payment
T/T, Western Union. Paypal and etc...

Delivery
Items will be shipped within 3 working days after payment is received.

By DHL/UPS/FedEx: about 5-7 working days.
By EMS/POSTNL: about 15-20 working days.

Packaging

1. Electrostatic Bag/ Anti-static Trays/ Plastic Pallet/ Air Bubble Film/

2. Suitable Carton Boxes.

The packing is able to withstand rough handling.

RoHS Small 1.8 2.4 2.8 320x240 TFT Screen Module IPS Full Color RGB SPI 3.2 3.5 4.3 7.0 Inch Tft LCD Display 21

FAQ1

1. Q: Are you a manufactory or trade company?

A. We are a factory located in Shenzhen and Jiangxi, which specializes in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

2. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

In regular cooperation, samples can be free.

3. Q: What is the delivery time?

A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.

4. Q: Can you custom the LCD or touch screen for me?

A: Yes, we can provide custom services.

For the LCD display, backlight brightness and FPC cable can be customized.

For the touch screen, we can customize the whole touch panel, such as the color, shape, cover thickness, and so on according to the customer's requirements.

5. Q: Which applications your products are mainly used for?

A: Embedded system, Intercom system, Biometrix, HMI, Smart home, Robert, Hand-held PDA, After market automotive and etc.
